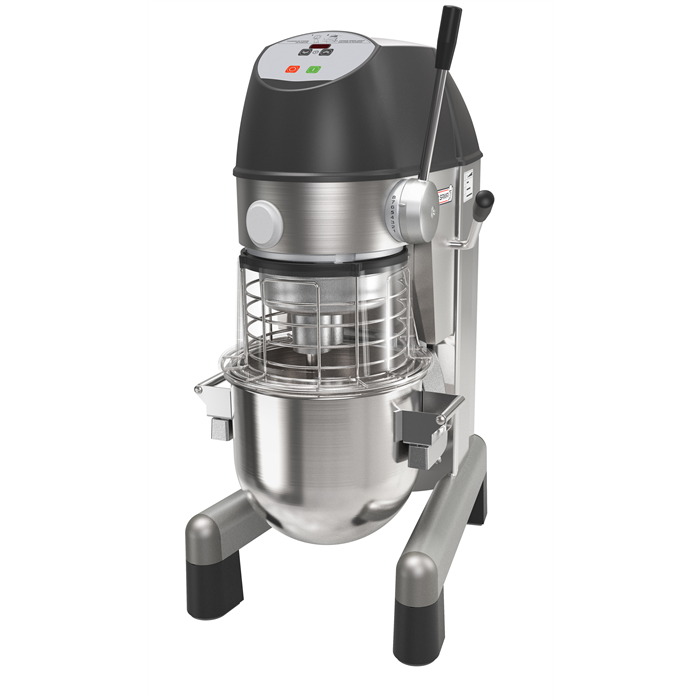

Stainless Steel Planetary Mixer, 20 lt - Table Model

Waterproof touch button control panel with timer setting and display.

Bowl detection device allows the mixer to switch on only when the bowl and the solid safety screen are properly installed and positioned together.

Maximum capacity (flour, with 60% of hydration) 6 kg, suitable for 50-150 meals per service.

Raising and lowering of the bowl controlled by lever with an automatic locking of the bowl when in the raised position.

Mechanical speed variator.

Adjustable feet for perfect stability.

The solid safety screen and the stainless steel wire structure are both removable and dismantled for cleaning and are dishwasher safe.

Body entirely in stainless steel.

Compact design for table top installations.

302 AISI Stainless steel bowl - 20 lt. capacity.

Asynchronous motor with high start-up torque.

Planetary movement based on self lubricating gears, eliminating any risk of leaks.

8 speeds, from 35 to 180 prm, to be lever operated while the machine is working, according to the tool and the mixture hardness.

Water protected planetary system (IP55 electrical controls, IP23 overall machine).

Power: 750 watts.

Capacity:

Performance (up to): 6 kg/Cycle

Capacity: 20 litres

Electric

Supply voltage: 200-240/380-415 V/3 ph/50 Hz

Electrical power max: 0.75 kW

Total Watts: 0.75 kW

Key Information:

External dimensions, Width: 521 mm

External dimensions, Depth: 685 mm

External dimensions, Height: 1010 mm

Shipping weight: 93 kg

Net weight (kg): 76

Cold water paste: 6 kg with Spiral hook

Egg whites: 32 with Whisk
