Planetary Mixers

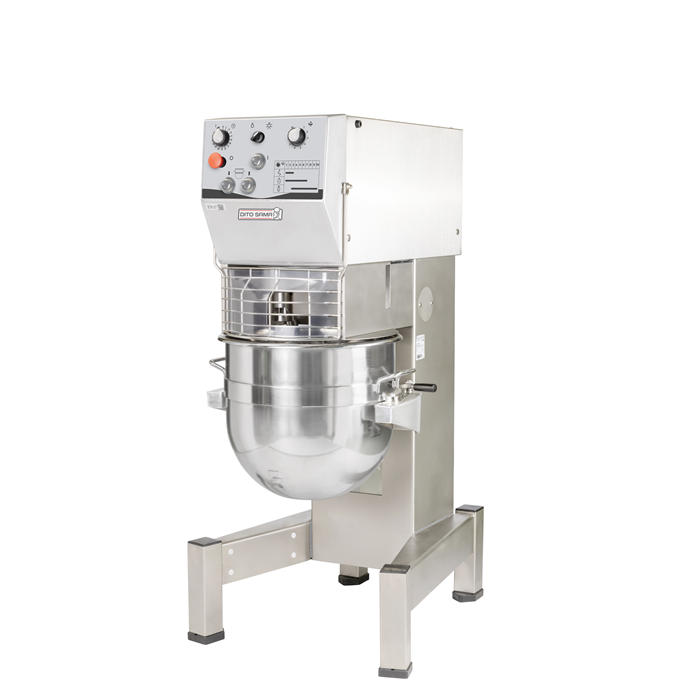

Planetary Mixer, 60 lt - Electronic

Electronic speed variator.

Bowl detection device allows the mixer to switch on only when the bowl and the solid safety screen are properly installed and positioned together.

Maximum capacity (flour, with 60% of hydration) 20 kg, suitable for 400-800 meals per service.

Waterproof control panel with timer and speed setting knobs.

Safety device will automatically stop the machine if the screen is lifted.

Geared motor drive system activates the raising and lowering of the bowl and bowl lighting.

Adjustable feet for perfect stability.

Plastic safety screen easily removable for cleaning.

Sturdy construction with mechanically welded strong metal frame.

302 AISI Stainless steel bowl - 60 lt. capacity.

Asynchronous motor with high start-up torque.

10 speeds form 20 to 180 rpm (planetary movement) to adjust to the selected tool and the mixture hardness.

Water protected planetary system (IP55 electrical controls, IP23 overall machine).

Height adjustable feet.

Power: 4000 watts.

Overload protected planetary system and motor.

Capacity:

Performance (up to): ISO 9001; ISO 14001 kg/Cycle

Capacity: 60 litres

Electric

Supply voltage: 380-440 V/3N ph/50/60 Hz

Electrical power max: 4 kW

Total Watts: 4 kW

Key Information:

External dimensions, Width: 685 mm

External dimensions, Depth: 1050 mm

External dimensions, Height: 1445 mm

Shipping weight: 323 kg

Cold water paste: ISO 9001; ISO 14001 kg with Spiral hook

Egg whites: 100 with Whisk
