Planetary Mixers

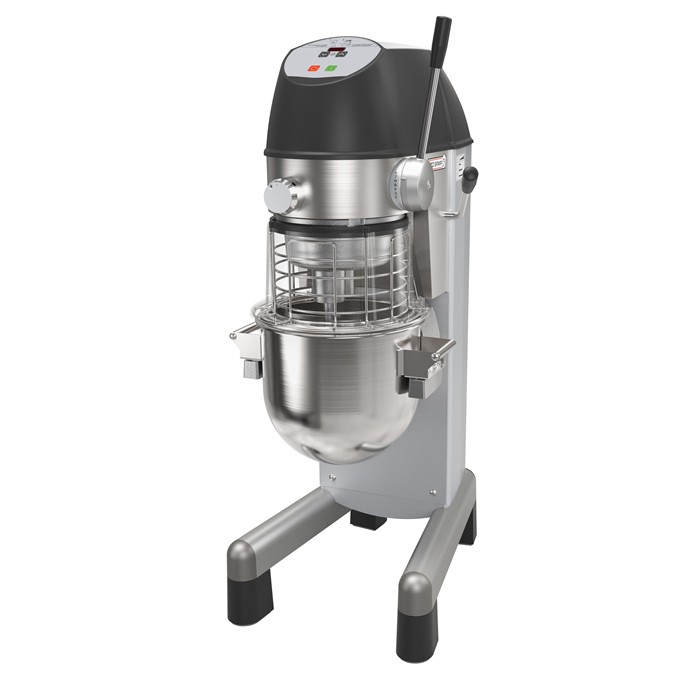

Planetary Mixer, 20 lt - Floor Model, with Hub, Single Phase

Waterproof touch button control panel with timer setting and display.

Bowl detection device allows the mixer to switch on only when the bowl and the solid safety screen are properly installed and positioned together.

Maximum capacity (flour, with 60% of hydration) 6 kg, suitable for 50-150 meals per service.

Raising and lowering of the bowl controlled by lever with an automatic locking of the bowl when in the raised position.

Mechanical speed variator.

The solid safety screen and the stainless steel wire structure are both removable and dismantled for cleaning and are dishwasher safe.

Water protected planetary system (IP55 electrical controls, IP34 appliance overall).

Body in non-corrosive material.

Adjustable feet for perfect stability.

Sturdy construction with mechanically welded strong metal frame.

302 AISI Stainless steel bowl - 20 lt. capacity.

Asynchronous motor with high start-up torque.

8 speeds, from 35 to 180 prm, to be lever operated while the machine is working, according to the tool and the mixture hardness.

Planetary movement based on self lubricating gears, eliminating any risk of leaks.

Power: 750 watts.

Capacity:

Performance (up to): 6 kg/Cycle

Capacity: 20 litres

Electric

Supply voltage: 220-240 V/1N ph/50 Hz

Electrical power max: 0.75 kW

Total Watts: 0.75 kW

Key Information:

External dimensions, Width: 521 mm

External dimensions, Depth: 685 mm

External dimensions, Height: 1230 mm

Shipping weight: 114 kg

Net weight (kg): 95

Cold water paste: 6 kg with Spiral hook

Egg whites: 32 with Whisk
