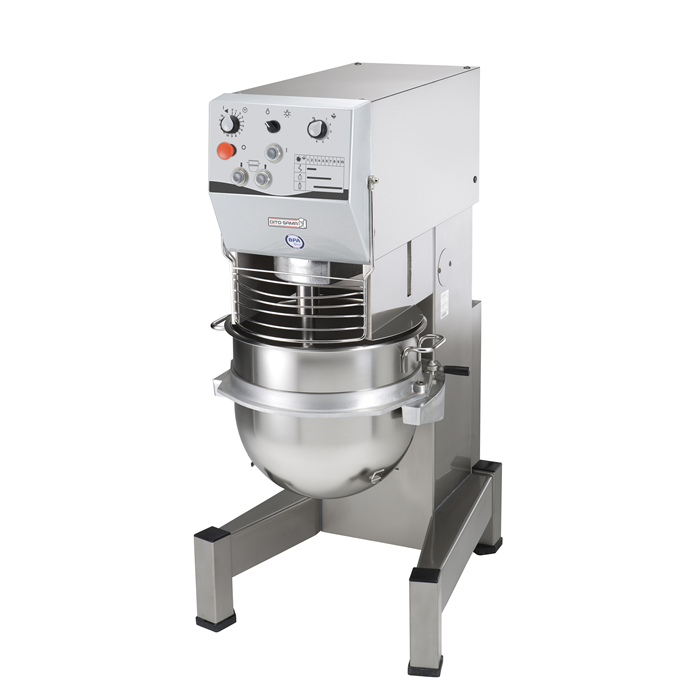

Planetary Mixer, 60 lt - Mechanical Variator with Electric Control
600181
60 lt planetary mixer, bowl detection device and SOLID BPA free safety screen, with electric control of the speed variator and of the raising and lowering of the bowl. Equipped with stainless steel spiral hook, paddle and whisk. Timer and bowl lighting included
Get a quoteFeatures
Solid BPA-free safety screen, covering the stainless steel wire one, limits the flour and unsafe dust particles when used in bakery and pastry preparation.
Removable chute to add ingredients while working included as standard.
Professional beater mixer for kneading, mixing and whisking all types of food products.
Delivered with.
• Stainless steel spiral kneading hook, Cast aluminum paddle, 302 AISI stainless steel whisk and Mixing Bowl for 60 lt
Maximum capacity (flour, with 60% of hydration) 20 kg, suitable for 400-800 meals per service.
Mechanical speed variator with an electric control.
Bowl detection device allows the mixer to switch on only when the bowl and the solid safety screen are properly installed and positioned together.
Waterproof control panel with timer setting knob and speed setting buttons.
Safety device will automatically stop the machine if the screen is lifted.
Geared motor drive system to raise and lower bowl and bowl lighting.
Adjustable feet for perfect stability.
Plastic safety screen easily removable for cleaning.
Body in non-corrosive material.
Sturdy construction with mechanically welded strong metal frame.
302 AISI Stainless steel bowl - 60 lt. capacity.
Asynchronous motor with high start-up torque.
10 speeds from 20 to 180 rpm (planetary movement), to be set according to the tool and the mixture hardness.
Water protected planetary system (IP55 electrical controls, IP23 overall machine).
Planetary movement based on self lubricating gears, eliminating any risk of leaks.
Power: 1800 watts.
Overload protected planetary system and motor.
Capacity:
Performance (up to): ISO 9001; ISO 14001 kg/Cycle
Capacity: 60 litres
Electric
Supply voltage: 220-240/380-415 V/3 ph/50 Hz
Electrical power max: 1.79 kW
Total Watts: 1.79 kW
Key Information:
External dimensions, Width: 685 mm
External dimensions, Depth: 1030 mm
External dimensions, Height: 1445 mm
Shipping weight: 347 kg
Cold water paste: ISO 9001; ISO 14001 kg with Spiral hook
Egg whites: 100 with Whisk
