Dough Mixers

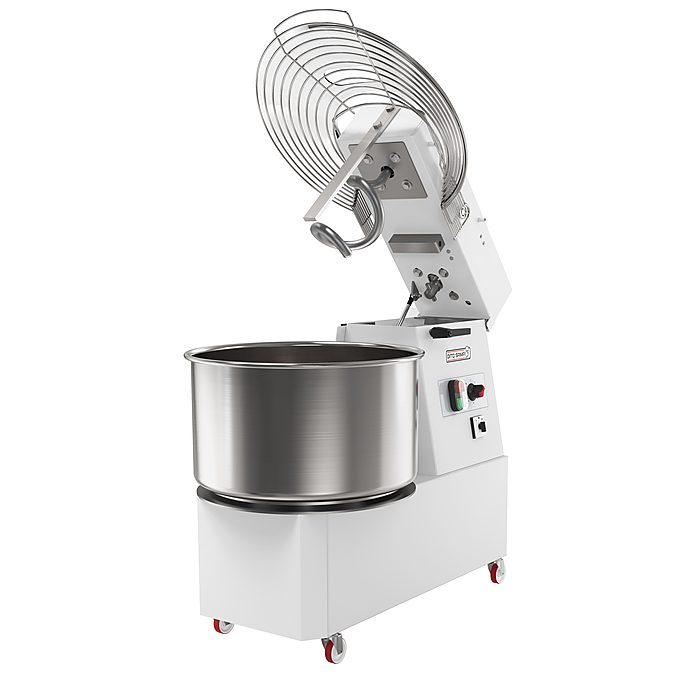

42 liter Spiral Dough Kneader, 2 Speeds, Removable Bowl, Tilting Head

Central column for optimal kneading.

Stainless steel (AISI304) squared dough breaker bar for fast and even kneading results

Transparent protective screen to reduce flour dust release in the work area during kneading (EU EN453:2014) and to prevent dough contaminations.

Minimum kneading capacity: 19 kg/cycle, with 60% hydratation.

Safety device stops the appliance if the cover is openend.

Equipped with 4 wheels, of which 2 with brakes, allowing to easily move the appliance for storage or cleaning.

The appliance fits under standard kitchen worktops (see installation drawing).

Additional bowl available as optional accessory.

Constructed in painted steel.

AISI304 stainless steel bowl, spiral hook and dough breaker bar.

Control panel with on/off switch, speed selection and timer.

Power: 1100 watts.

Analogic timer up to 30 minutes or continous mode.

IP54 protected control panel.

IP23 for the appliance overall.

Capacity:

Maximum kneading (60% hydratation): 33 kg/Cycle

Electric

Supply voltage: 380-415 V/3 ph/50 Hz

Total Watts: 3 kW

Key Information:

External dimensions, Width: 480 mm

External dimensions, Depth: 840 mm

External dimensions, Height: 800 mm

Shipping weight: 129 kg

Bowl capacity: 42 lt
